SKU: PRO-CDP6430
COMING SOON!!!

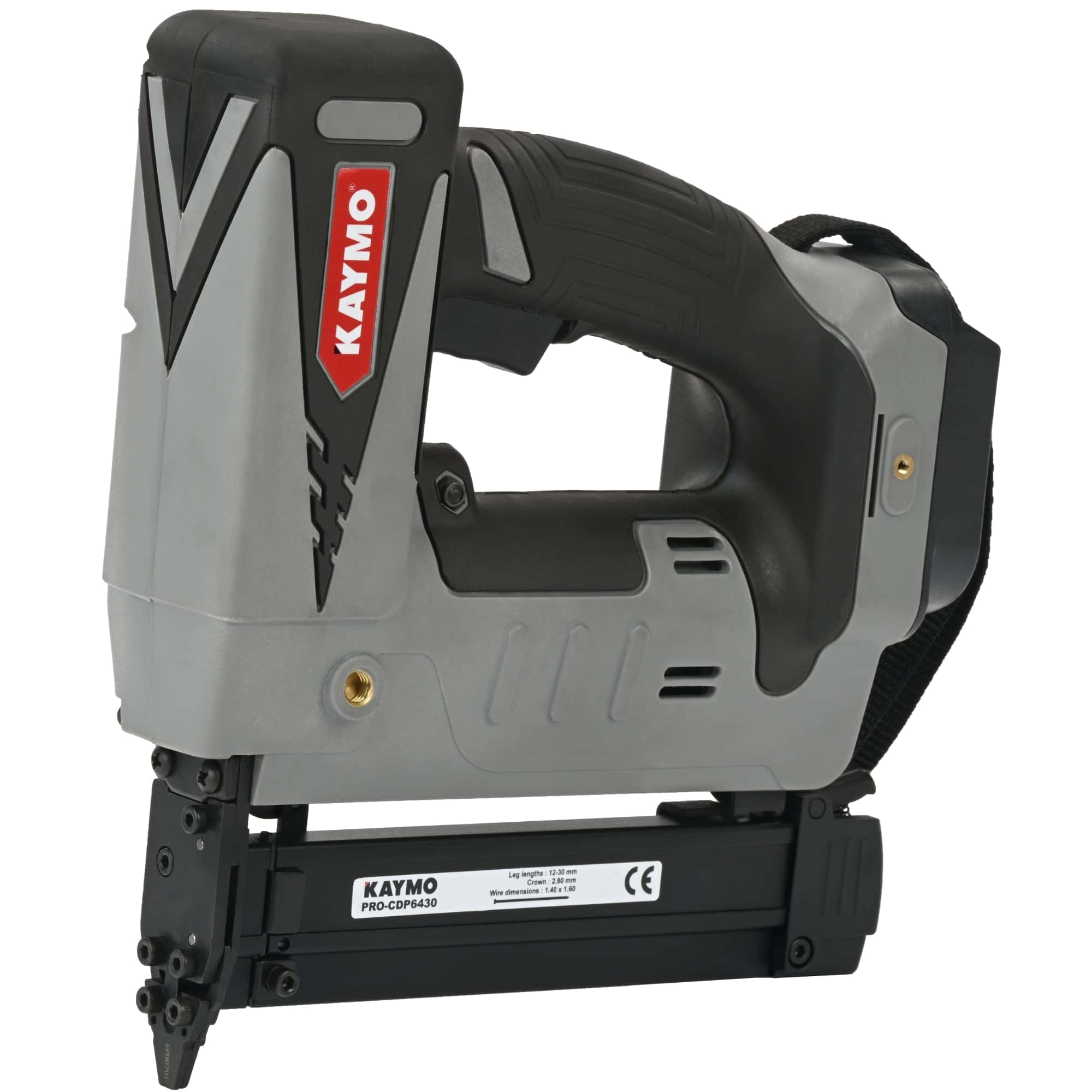

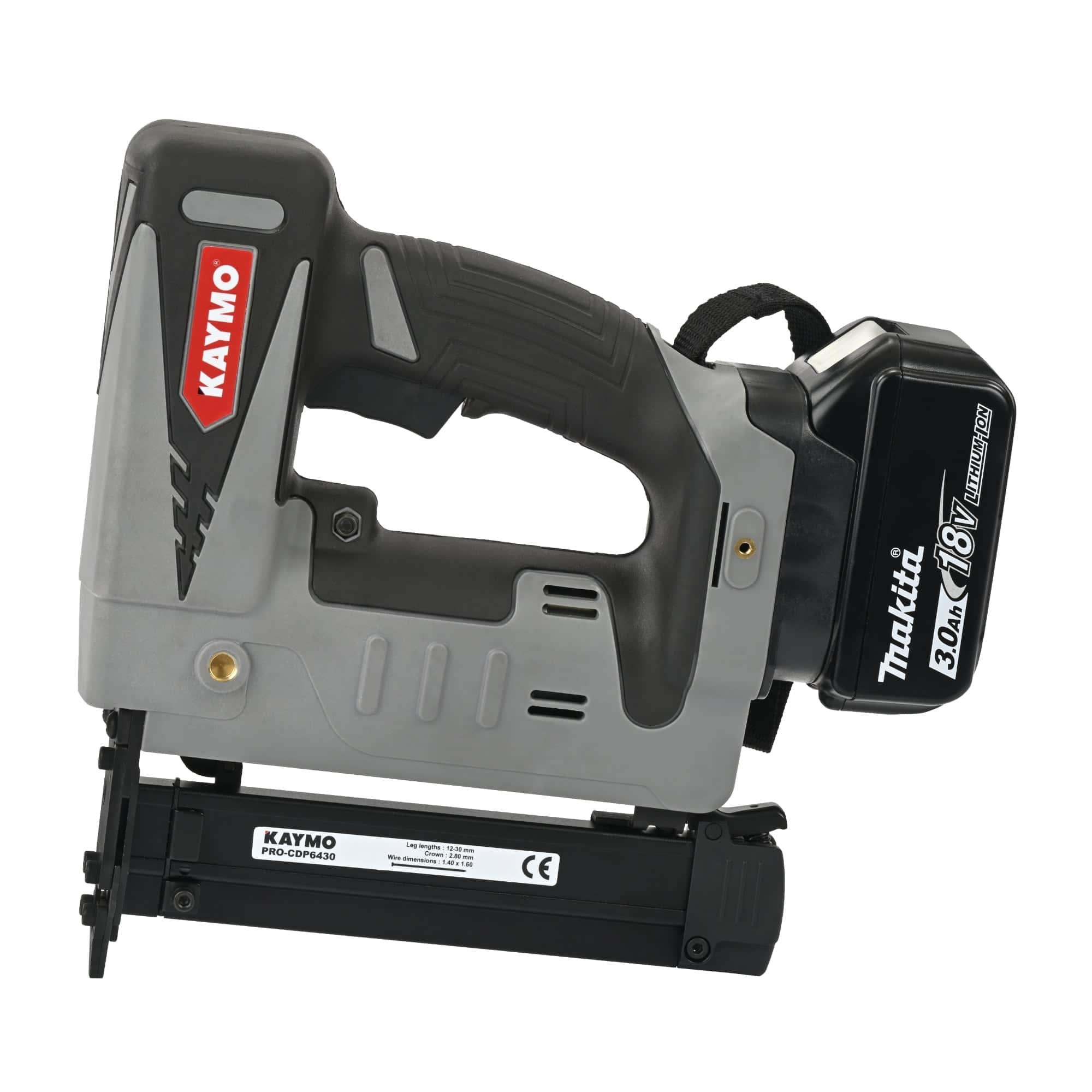

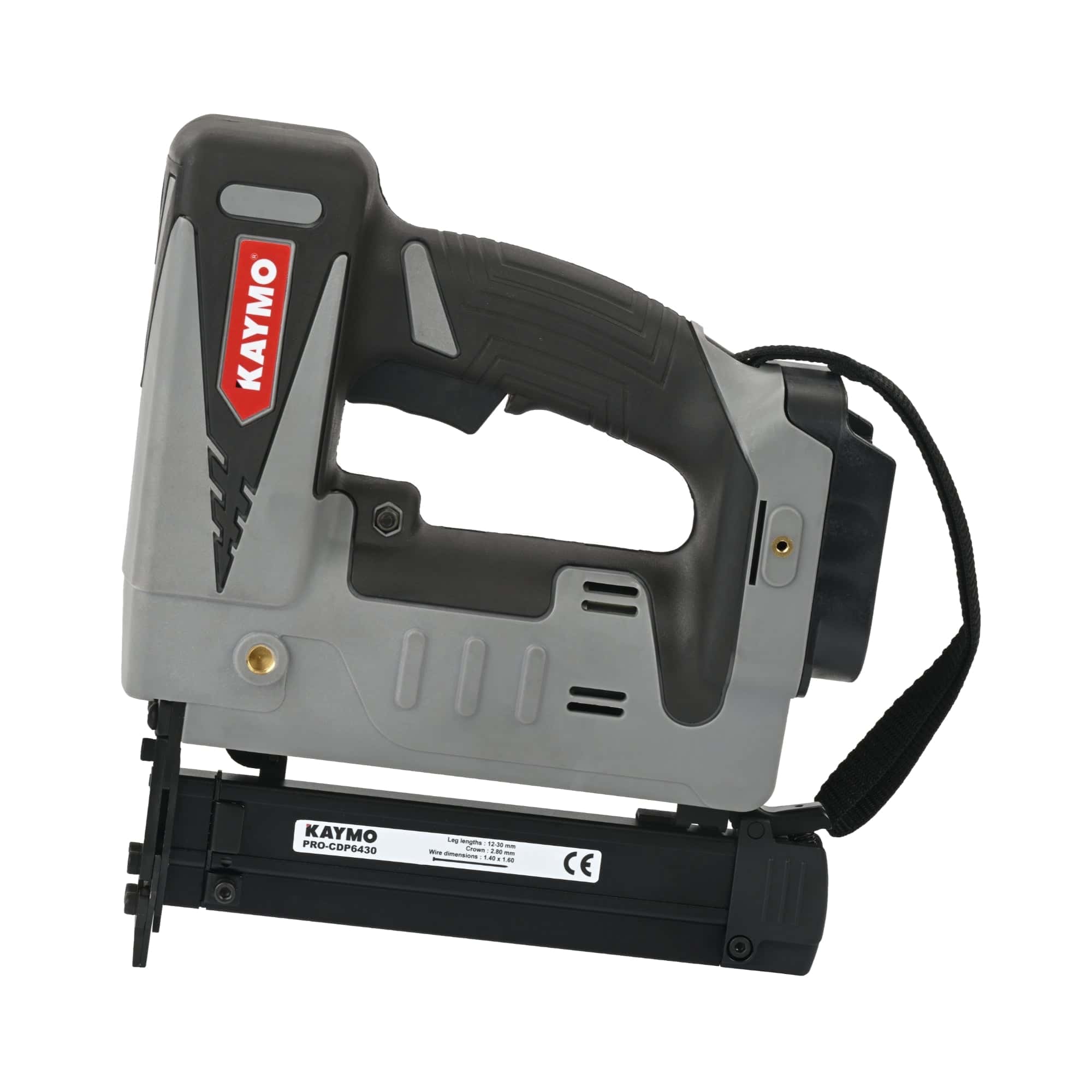

Introducing the game-changer in the realm of pinning technology: the Kaymo PRO-CDP6430 Cordless Pinner, the very first of its kind in India!
Here's what sets the PRO-CDP6430 apart:

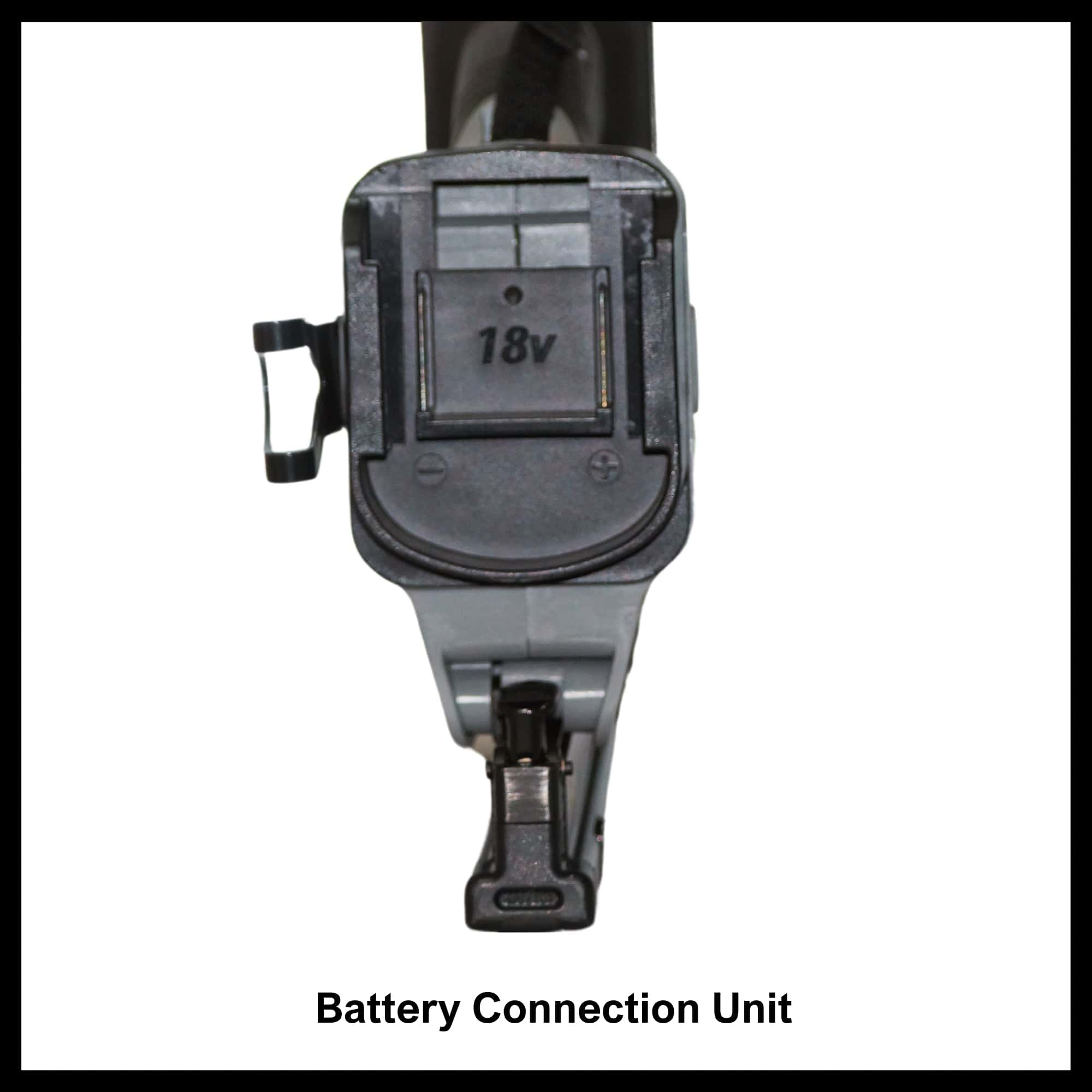

Compatible with Makita battery(3Ah,18V) & chargers
Battery weight- 645 gms, Charger weight – 900 gms
Lithium Ion Technology – allows battery to charge faster
High performance – 1000 shots per full charge
Portable – ideal for remote locations
Introducing the game-changer in the realm of pinning technology: the Kaymo PRO-CDP6430 Cordless Pinner, the very first of its kind in India!
Here's what sets the PRO-CDP6430 apart:
Compatible with Makita battery(3Ah,18V) & chargers
Battery weight- 645 gms, Charger weight – 900 gms
Lithium Ion Technology – allows battery to charge faster
High performance – 1000 shots per full charge
Portable – ideal for remote locations
₹ 0/-
Blow Up
Spares
| TOOL MODEL: | PRO-CDP6430 | |||||||
| FMS | PART CODE | PART NAME | ALT CODE | FMS | PART CODE | PART NAME | ALT CODE | |
| FMS | CC5301 | COMPRESSION SPRING | FMS | EPH0901 | SAFETY CUSHION | |||
| FMS | DFP0201 | WORK CONTACTING ELEMENT(B) | FMS | FA2401 | PIN | |||
| DFQ0501 | INTERNAL GEAR | FMS | FK1801 | LATCH | ||||
| DFQ0601 | GEARWHEEL | FMS | FK2401 | COMPRESSION SPRING | ||||
| DFQ0901 | SPRING | FMS | KD0410 | SCREW | ||||
| DFQ1001 | SPACER | FMS | KD0416 | SCREW | ||||
| DFQ1101 | SPACER | FMS | KD0420 | SCREW | ||||
| DFQ1201 | OIL IMPREGNATED BEARINGS | FMS | KD0425 | SCREW | ||||
| FMS | DFQ1601W | TRIGGER VALVE ASSY. | FMS | KF0308 | FLAT HD.BOLT | |||
| FMS | DFQ1802 | SHAFT | FMS | KM0405 | HEX.SOC.HD.BOLT | |||
| FMS | DFQ1901 | SPACER | FMS | KM0406 | HEX.SOC.HD.BOLT | |||
| DFQ2101 | UPPER RAIL | FMS | KM0408 | HEX.SOC.HD.BOLT | ||||
| DFQ2201 | SLIDING SET | FMS | KM0412 | HEX.SOC.HD.BOLT | ||||
| DFQ2501 | SIDE PLATE(L.H.) | FMS | KM0414 | HEX.SOC.HD.BOLT | ||||
| FMS | DFQ2602 | BUMPER | FMS | KP3008 | PARALLEL PIN | |||
| FMS | DFQ2901 | COMPRESSION SPRING | FMS | KR0404 | BUTTON HD.BOLT | |||
| FMS | DFQ3102 | SAFETY(B) | FMS | KR0406 | BUTTON HD.BOLT | |||
| FMS | DFQ3201 | COMPRESSION SPRING | FMS | KS3008 | SPRING PIN | |||
| DFQ3201W | GEAR ASSY. | FMS | KS3018 | SPRING PIN | ||||
| DFQ3202W | GEAR ASSY. | FMS | KS4010 | SPRING PIN | ||||
| DFQ3301 | SUPPORT | FMS | KX0410 | CAP HD.BOLT | ||||
| FMS | DFQ3402 | ROD | FMS | KX0422 | CAP HD.BOLT | |||
| FMS | DFQ3501 | CONTACT LEVER(1) | FMS | KX0518 | CAP HD.BOLT | |||
| FMS | DFQ3601 | CONTACT LEVER(2) | FMS | PH0402 | COVER PLATE(A) | |||
| FMS | DFQ3701 | SPRING | PH1601 | MAGAZINE CAP | ||||
| FMS | DFQ4101 | TRIGGER | FMS | PH1701 | SPACER | |||
| FMS | DFQ5701 | FLAT WASHER | PH1801 | DISTANCE SET | ||||
| DFQ6001 | SUPPORTER | FMS | PH1901 | PUSHER | ||||
| DFQ6202 | MOTOR ASSY. | FMS | PH2001 | MAGAZINE RETAINER | ||||
| FMS | DFQ6302 | PARALLEL PIN SET | PH2101 | FIXED PLATE | ||||
| FMS | DFQ6501 | HOOK | PH2301 | COVER | ||||
| FMS | DFQ6601 | FRONT BODY | FMS | PH2401 | COMPRESSION SPRING | |||
| DFQ6701 | REAR BODY | FMS | PH2601 | PUSHER PIN | ||||
| DFQ6801 | MOTOR MOUNT | FMS | PH2701 | PUSHER SPRING | ||||
| DFQ7001 | BATTERY HOLDER | PH2801 | PIVOT | |||||
| DPH0201 | SUPPORT | FMS | PH3801 | NUT PLATE | ||||
| FMS | DPH0301W | DRIVER ASSY. | TOOL NAME: | PRO-CDP6430 | ||||
| DPH0701W | MAGAZINE ASSY. | XC0017 | CONDUCTOR | |||||
| FMS | EFM0501 | WORK CONTACTING ELEMENT(A) | XC0018 | CONDUCTOR | ||||
| EPH0301 | MAGAZINE SEAT | XC0019 | CONDUCTOR | |||||
| FMS | EPH0401 | GUIDE PLATE(A) | FMS | XE0105 | MICRO SWITCH | |||
| FMS | EPH0501 | GUIDE PLATE(B) | FMS | YE2501 | E-RING | |||
| FMS | EPH0601 | COVER PLATE(B) | FMS | YG0401 | SPRING WASHER | S0410400 | ||
| EPH0701 | ADJUSTABLE PLATE | FMS | YL0407 | LOCK NUT |
One Sheeter
Application
| EXHIBITION BOOTH INSTALLTION | To install exhibition booths to make partitions. |
| INTERIORS | To fix leather /veneer onto the wooden frames |
| DIY | Turnkey Projects - woodworking, hobbies for home wood applications |
